LBH型防尘密封件-NOK-LBH型防尘密封件_LBI防尘圈
丁腈橡胶(NBR)
氟橡胶(FKM)
·请在订货时注明NOK的零件号、型号和尺寸。

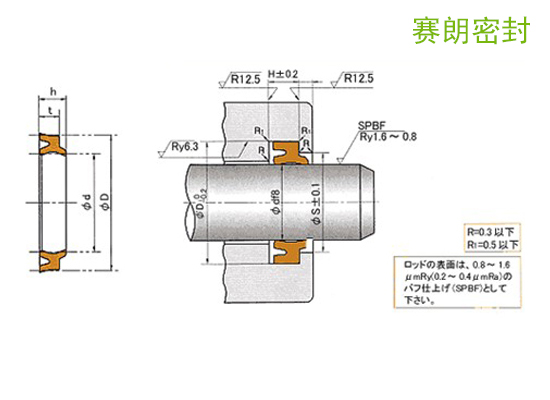

(例)·典型尺寸LBH12.5 20.5 4.5 6
型号标志密封件的公称尺寸
依次为内径（d）、外径（D）、厚度（t）和高度（h）
·部品番号CL0447C1
材料标准型：NOK A505
耐热型：NOK F357
※在选择型号之前，请确认应用范围。
LBH型
防尘密封件
注：
耐热型产品的零件号可能与打印在产品上的不同。
| 防尘密封件的公称尺寸 | 腔体尺寸 | 标准型（A505） | 耐热型（F357） | |||||||||
| d | D | t | h | φd | φD | φS | H | B | NOK部品番号 | 名义号 | NOK部品番号 | 名义号 |
| 12.5 | 20.5 | 4.5 | 6 | 12.5 | 20.5 | 16.8 | 5 | 2 | CL0447C1 | LBH-12.5 | ||
| 14 | 22 | 14 | 22 | 18.3 | CL0432C0 | LBH-14 | ||||||
| 16 | 24 | 16 | 24 | 20.3 | CL0293C0 | LBH-16 | CL0293C3 | LBH-16F | ||||
| 18 | 26 | 18 | 26 | 22.3 | CL0011C0 | LBH-18 | CL0011C6 | LBH-18F | ||||
| 20 | 28 | 20 | 28 | 24.3 | CL0017C0 | LBH-20 | CL0017C4 | LBH-20F | ||||
| 22 | 30 | 22 | 30 | 26.3 | CL0240C0 | LBH-22 | ||||||
| 22.4 | 30.4 | 22.4 | 30.4 | 26.7 | CL0026C3 | LBH-22.4 | CL0026C6 | LBH-22.4F | ||||
| 25 | 33 | 25 | 33 | 29.3 | CL0031C0 | LBH-25 | CL0031C2 | LBH-25F | ||||
| 28 | 36 | 28 | 36 | 32.3 | CL0042C0 | LBH-28 | CL0042C4 | LBH-28F | ||||
| 30 | 38 | 5 | 6.5 | 30 | 38 | 34 | 6 | CL0050C0 | LBH-30 | CL0050C3 | LBH-30F | |
| 31.5 | 39.5 | 31.5 | 39.5 | 35.5 | CL0054C0 | LBH-31.5 | CL0054C3 | LBH-31.5F | ||||
| 32 | 40 | 32 | 40 | 36 | CL0363C0 | LBH-32 | CL0363C3 | LBH-32F | ||||
| 35 | 43 | 35 | 43 | 39 | CL0066C1 | LBH-35 | CL0066C4 | LBH-35F | ||||
| 35.5 | 43.5 | 35.5 | 43.5 | 39.5 | CL0072C0 | LBH-35.5 | CL0072C4 | LBH-35.5F | ||||
| 36 | 44 | 36 | 44 | 40 | CL0335C1 | LBH-36 | ||||||
| 40 | 48 | 40 | 48 | 44 | CL0077C2 | LBH-40 | CL0077C4 | LBH-40F | ||||
| 45 | 53 | 45 | 53 | 49 | CL0085C0 | LBH-45 | CL0085C4 | LBH-45F | ||||
| 50 | 58 | 50 | 58 | 54 | CL0087C3 | LBH-50 | CL0087C5 | LBH-50F | ||||
| 53 | 61 | 53 | 61 | 57 | CL0100C0 | LBH-53 | CL0100C2 | LBH-53F | ||||
| 55 | 63 | 55 | 63 | 59 | CL0104C0 | LBH-55 | CL0104C2 | LBH-55F | ||||
| 56 | 64 | 56 | 64 | 60 | CL0105C1 | LBH-56 | CL0105C4 | LBH-56F | ||||
| 60 | 68 | 60 | 68 | 64 | CL0107C0 | LBH-60 | CL0107C2 | LBH-60F | ||||
| 63 | 71 | 63 | 71 | 67 | CL0109C1 | LBH-63 | CL0109C3 | LBH-63F | ||||
| 65 | 73 | 65 | 73 | 69 | CL0115C0 | LBH-65 | CL0115C2 | LBH-65F | ||||
| 67 | 75 | 67 | 75 | 71 | CL0118C1 | LBH-67 | ||||||
| 70 | 80 | 6 | 8 | 70 | 80 | 75 | 7 | 3 | CL0121C0 | LBH-70 | CL0121C3 | LBH-70F |
| 71 | 81 | 71 | 81 | 76 | CL0125C0 | LBH-71 | CL0125C2 | LBH-71F | ||||
| 75 | 85 | 75 | 85 | 80 | CL0127C0 | LBH-75 | CL0127C2 | LBH-75F | ||||
| 80 | 90 | 80 | 90 | 85 | CL0138C1 | LBH-80 | CL0138C3 | LBH-80F | ||||
| 85 | 95 | 85 | 95 | 90 | CL0142C0 | LBH-85 | CL0142C3 | LBH-85F | ||||
| 90 | 100 | 90 | 100 | 95 | CL0149C0 | LBH-90 | CL0149C4 | LBH-90F | ||||
| 95 | 105 | 95 | 105 | 100 | CL0152C0 | LBH-95 | CL0152C3 | LBH-95F | ||||
| 100 | 110 | 100 | 110 | 105 | CL0154C2 | LBH-100 | CL0154C4 | LBH-100F | ||||
| 105 | 115 | 105 | 115 | 110 | CL0476C0 | LBH-105 | ||||||
| 106 | 116 | 106 | 116 | 111 | CL0162C0 | LBH-106 | ||||||
| 110 | 120 | 110 | 120 | 115 | CL0448C0 | LBH-110 | CL0448C2 | LBH-110F | ||||
| 112 | 122 | 112 | 122 | 117 | CL0166C2 | LBH-112 | CL0166C3 | LBH-112F | ||||
| 115 | 125 | 115 | 125 | 120 | CL0478C0 | LBH-115 | ||||||
| 118 | 128 | 118 | 128 | 123 | CL0466C0 | LBH-118 | ||||||
| 125 | 138 | 7 | 9.5 | 125 | 138 | 132 | 8 | CL0171C0 | LBH-125 | CL0171C3 | LBH-125F | |
| 132 | 145 | 132 | 145 | 139 | CL0174C0 | LBH-132 | ||||||
| 140 | 153 | 140 | 153 | 147 | CL0179C1 | LBH-140 | CL0179C4 | LBH-140F | ||||
| 145 | 158 | 145 | 158 | 152 | CL0182C0 | LBH-145 | ||||||
| 150 | 163 | 150 | 163 | 157 | CL0185C0 | LBH-150 | ||||||
| 160 | 173 | 160 | 173 | 167 | CL0188C1 | LBH-160 | CL0188C3 | LBH-160F | ||||
| 174 | 160 | 174 | 167 | CL0487C0 | LBH-160A | |||||||
| 165 | 178 | 165 | 178 | 172 | CL0190C0 | LBH-165 | ||||||
| 170 | 185 | 11 | 14 | 170 | 185 | 178 | 12 | 5 | CL0191C0 | LBH-170A | ||
| 175 | 188 | 7 | 9.5 | 175 | 188 | 182 | 8 | 3 | CL0193C0 | LBH-175 | ||
| 180 | 193 | 180 | 193 | 187 | CL0196C1 | LBH-180 | CL0196C4 | LBH-180F | ||||
| 194 | 180 | 194 | 187 | CL0489C0 | LBH-180A | |||||||
| 200 | 213 | 200 | 213 | 207 | CL0199C1 | LBH-200 | CL0199C3 | LBH-200F | ||||
| 205 | 218 | 205 | 218 | 212 | CL0446C0 | LBH-205 | ||||||
| 210 | 223 | 210 | 223 | 217 | CL0324C1 | LBH-210 | ||||||
| 224 | 237 | 224 | 237 | 231 | CL0204C1 | LBH-224 | CL0204C2 | LBH-224F | ||||
| 240 | 256 | 10 | 13 | 240 | 256 | 248 | 11 | 4 | CL0300C0 | LBH-240 | ||
| 250 | 266 | 9 | 12 | 250 | 266 | 258 | 10 | CL0207C0 | LBH-250A | |||
| 266 | 10 | 13 | 250 | 266 | 258 | 11 | CL0267C0 | LBH-250 | ||||
| 280 | 296 | 9 | 12 | 280 | 296 | 288 | 10 | CL0212C0 | LBH-280A | CL0212C2 | LBH-280AF | |
| 355 | 375 | 10 | 14 | 355 | 375 | 365 | 11 | 5 | CL0301C0 | LBH-355A | ||
| 500 | 520 | 11.5 | 15.5 | 500 | 520 | 510 | 12.5 | CL0460C0 | LBH-500 | |||
